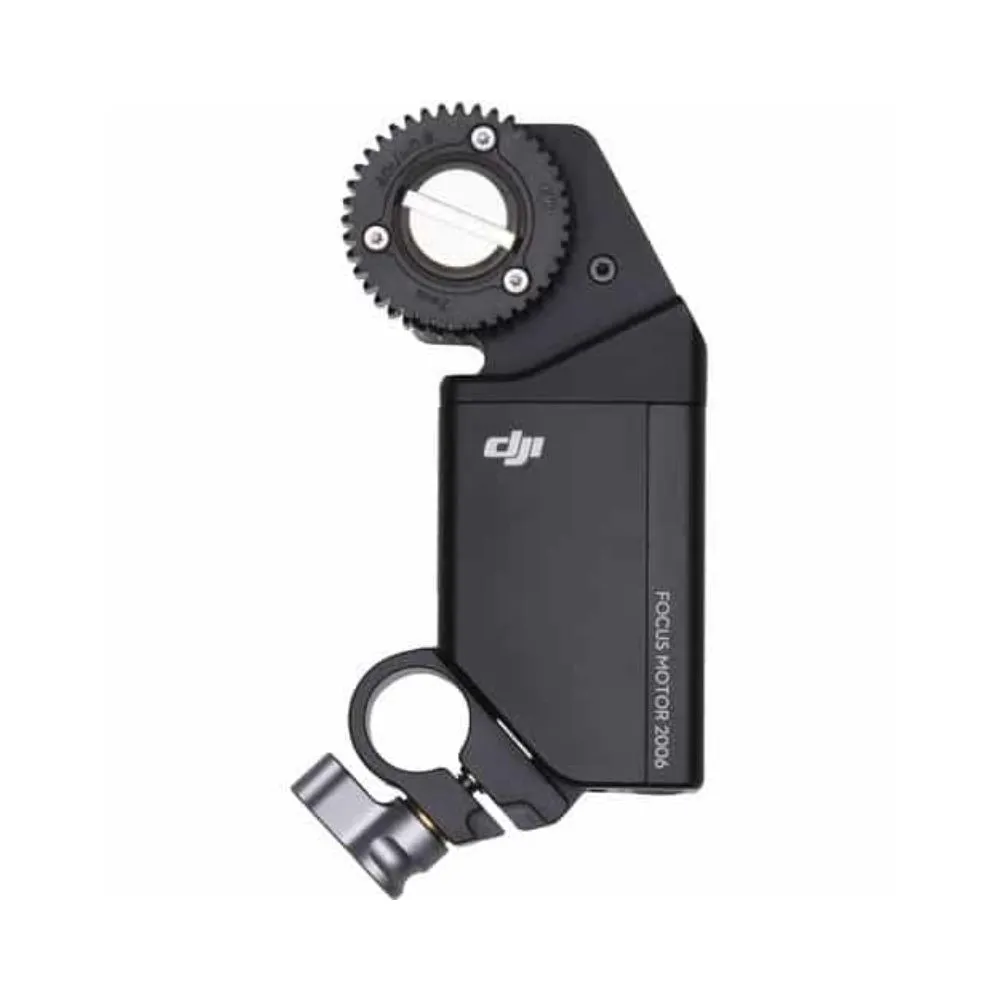

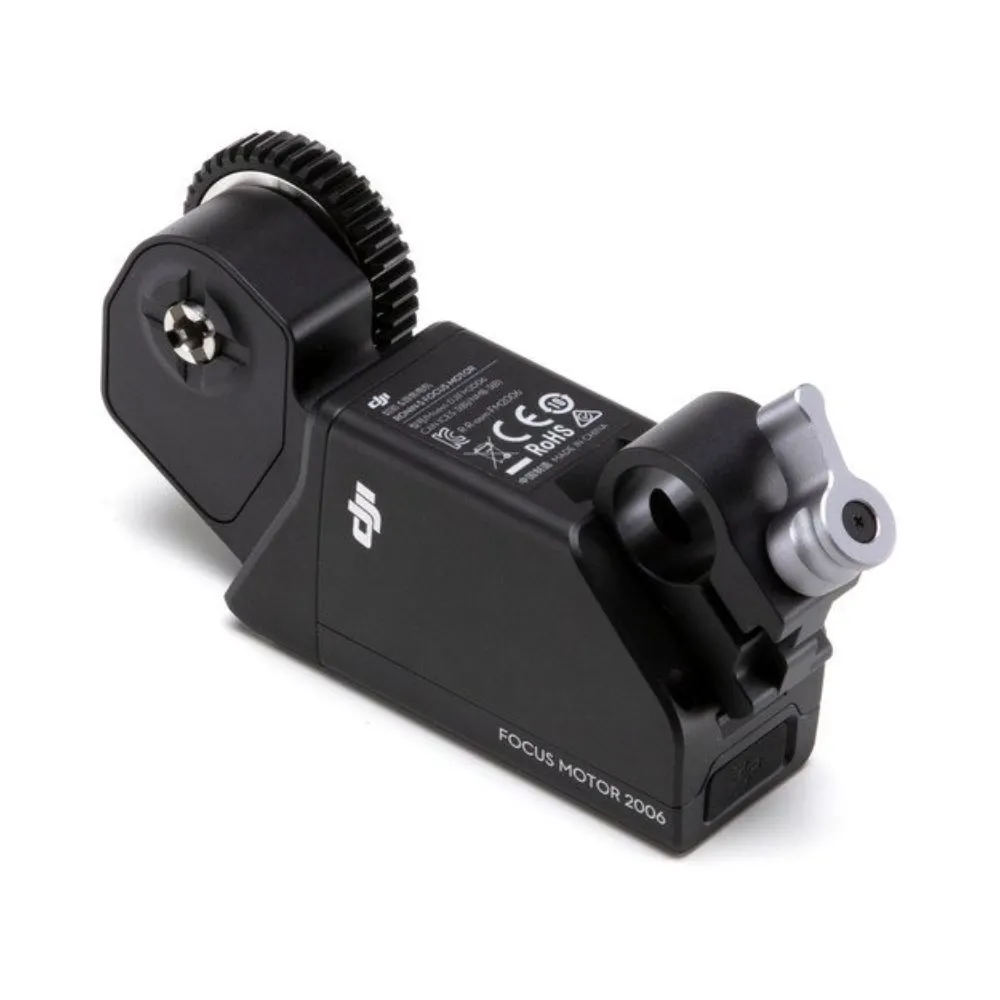

DJI Ronin-S Focus Motor
Original price was: $219.$209Current price is: $209.
The Ronin-S Focus Motor is used with the Ronin-S Focus Wheel to control the focus, iris, and zoom.
- Works with Optional Ronin-S Focus Wheel
- Control Focus, Iris, or Zoom
- Assignable Rotation Range
- Gear Rings Included
delivery all over lebanon
Immediate Same-Day Dispatch for Beirut
After Sales Services
Premium Care That Doesn’t End at the Checkout
Cash on Delivery payments
Pay Only When You Receive Your Order
Zalka Highway Flagship Store
Your Premier Destination for Genuine Tech
Free Delivery over 350$
Shop Risk-Free and Save on Shipping Costs
DJI Ronin-S Focus Motor
From the manufacture:
The Ronin-S Focus Motor is used with the Ronin-S Focus Wheel to control the focus, iris, and zoom.
Please click here to view the User Guide.

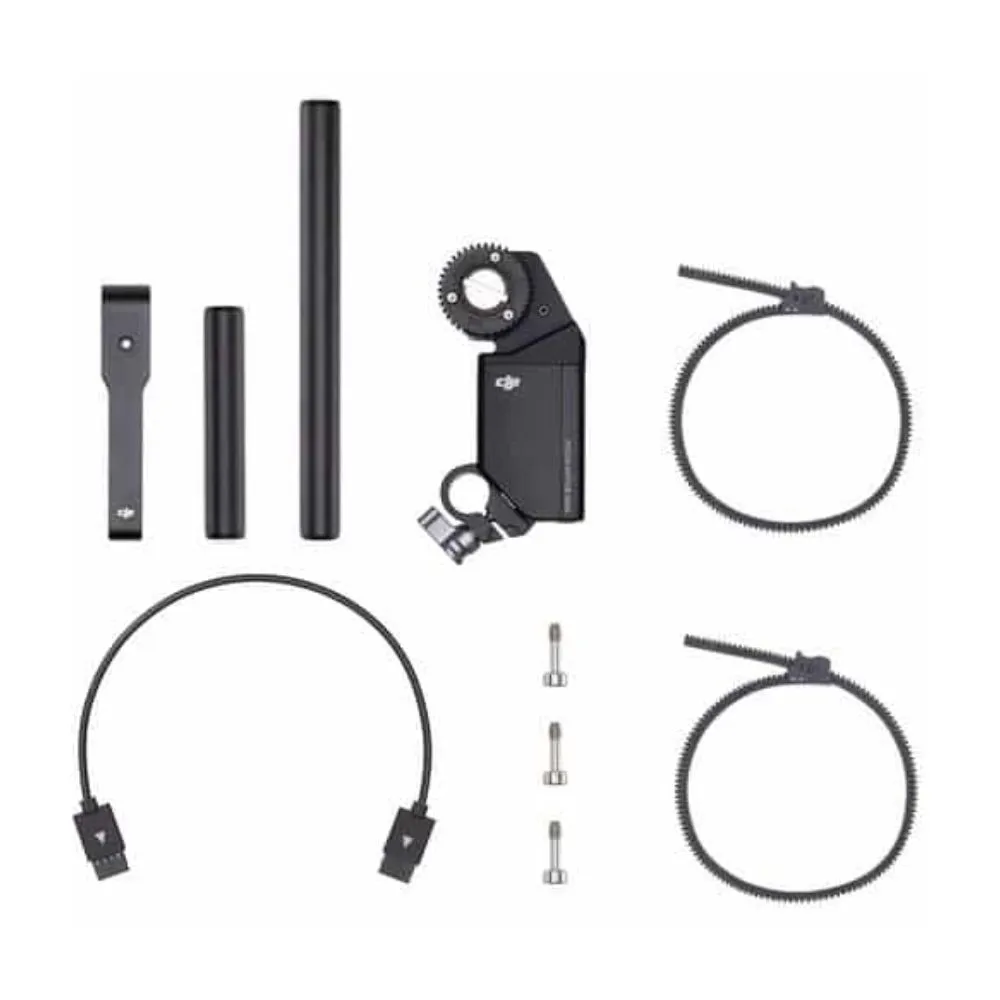

In the Box
Focus Motor × 1
Rod Mount × 1
15 mm Rod × 2
Screw × 4
Focus Gear Strip × 2
Power Cable × 1
Specifications
Focus Motor:
Weight: 198 g (power cable included)
Dimensions: 110 x 53 x 30 mm
Max. Torque: 0.5 Nm
Max. Speed: 210 RPM
Operating Current: Free current: 25 mA (12 V); Stall current: 0.5 A (12 V)
Operating Voltage: 6-17 V
Noise: 25 dB
Rod Clamp Inner Diameter: 15 mm
Gear: No. of teeth: 40; Module: 0.8
Operating Temperature: -20 to 55°C
Gear:
No. of Teeth: 151
Module: 0.8
Diameter: 30 to 110 mm
Length: 377 mm
Compatibility
Ronin-S
