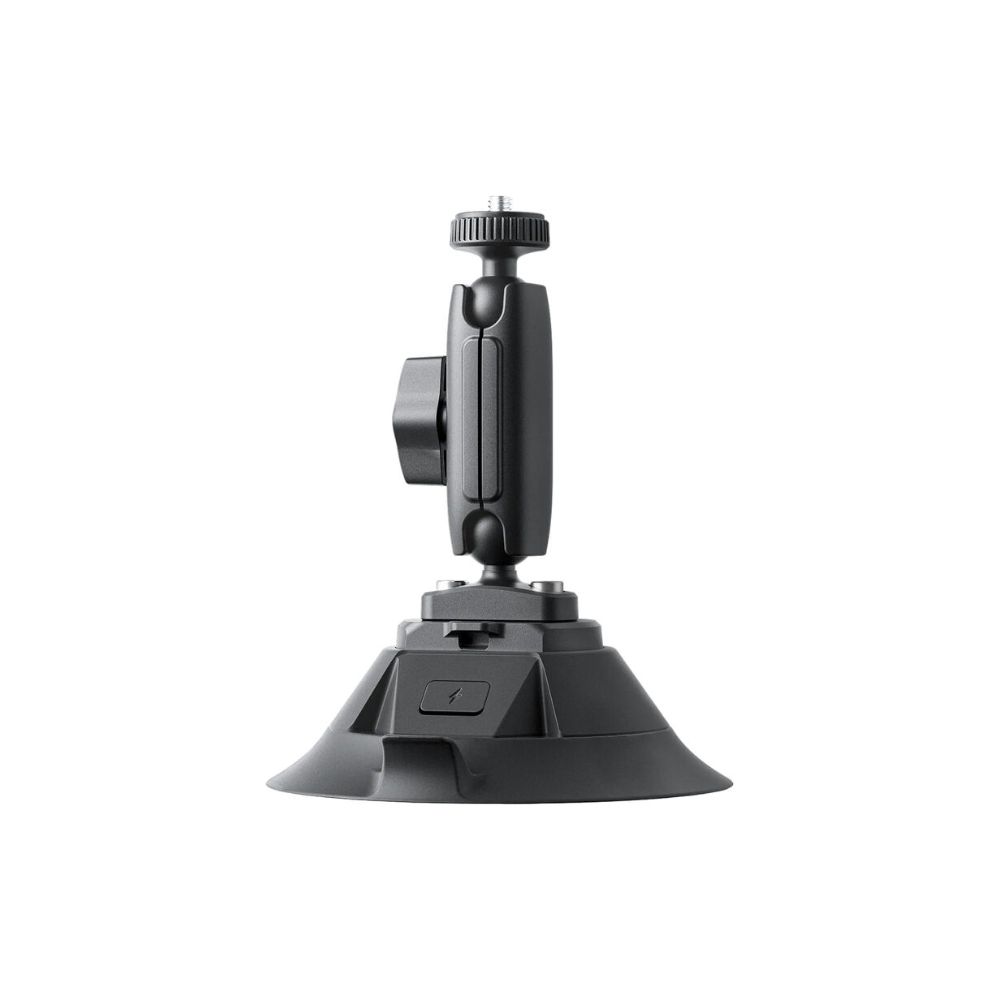

Insta360 Electric Suction Cup Mount

Intelligent Vacuum Security: The Insta360 Electric Suction Cup Mount

Banish the persistent anxiety of standard mechanical lever-lock suction cup failures with the groundbreaking Insta360 Electric Suction Cup Mount. Purpose-engineered for high-speed tracking shots, rugged off-road testing, and smooth cinematic car vlogging, this advanced rig shifts from passive, traditional suction pads to an active electronic holding ecosystem. Traditional hardware reliance can lose internal vacuum pressure over time due to microscopic surface scratches, thermal changes, or vehicle panel flex, risking catastrophic camera drops. This smart alternative addresses that issue with a built-in electric micro-pump and live automated sensor arrays that continuously track holding force in real-time, instantly recharging the negative pressure vacuum to lock your camera safely down against smooth, non-porous surfaces.

The heavy-duty 4.5-inch suction cup delivers exceptional raw holding power, achieving a maximum vertical payload threshold of 110.2 pounds ($50\text{ kg}$) and maintaining a steady continuous minimum force of 66.1 pounds ($30\text{ kg}$). Driven by a robust, rechargeable 1000mAh internal lithium-ion battery, the mount boasts up to 120 hours of continuous standby monitoring on a single charge. Its internal structure is impact-tested to survive violent $800\text{ G}$ sudden forces, rendering it ideal for aggressive track runs and extreme drift captures. Wrapped in high-grade, cold-resistant structural materials, the suction cup maintains a firm seal even in low temperatures down to $5^\circ\text{F}$ ($-15^\circ\text{C}$).

Active Autonomous Security and High-Vibration Resilience

Achieve unwavering structural confidence across high-speed highway tracking configurations:

• Active Micro-Pump Monitoring: The internal digital sensor continuously measures the tight seal layer, automatically engaging the pump to draw out air if pressure drops.

• Massive 110 lb Vertical Capacity: Yields a high-strength vertical clamping ceiling to effortlessly support action cameras, custom multi-cam cages, and robust extension bars.

• Flexible 360° Double Ball Head: Features dual-jointed fluid pivot points to quickly secure custom low-profile hood angles, side-door tracking paths, or roof views.

• Extended 120-Hour Active Lifecycle: Delivers days of secure field use on long commercial shoots, backed by a fast USB-C charging loop.

• Modular Accessory Expansion: Designed with a structural NATO rail connection point to seamlessly integrate with multi-cup rigs, boom arms, and extension frames.

Professional Environmental Protection and Streamlined Operations

Deploy on complex tracking arrays across changing weather environments with total peace of mind:

• 800G Sudden Impact Protection: Handles rigorous vibration profiles, gravel-road chatter, and abrupt braking without losing its physical hold.

• Sub-Zero Temperature Operation: Tailored to perform in sub-freezing environments down to $-15^\circ\text{C}$ without rubber hardening or fracturing.

• Dual Interchangeable Head Adapters: Arrives bundled with both a standard $1/4$“-20 threaded male screw and a classic 3-prong action camera mount to support extensive gear setups.

🚗 Automotive Rigging Safety Pro-Tip: While the active electronic vacuum pump provides unmatched security, always connect a secondary, independent safety tether line to a secure vehicle anchor point (like a hood latch or roof rack) whenever you rig the mount externally. Additionally, the electronic pump requires a smooth, non-porous surface; never place the suction cup directly over structural vinyl decal wraps, matte body finishes, or deep body panel crease lines, as air can leak into the system and cause the battery to drain rapidly trying to keep up.

Technical Performance & Structural Configuration Matrix

The detailed physical specifications, weight limits, and operational battery profiles are outlined below:

FAQS

Insta360 Electric Suction Cup Mount Frequently Asked Questions

How does the electric suction cup indicate that it has reached a safe holding pressure?

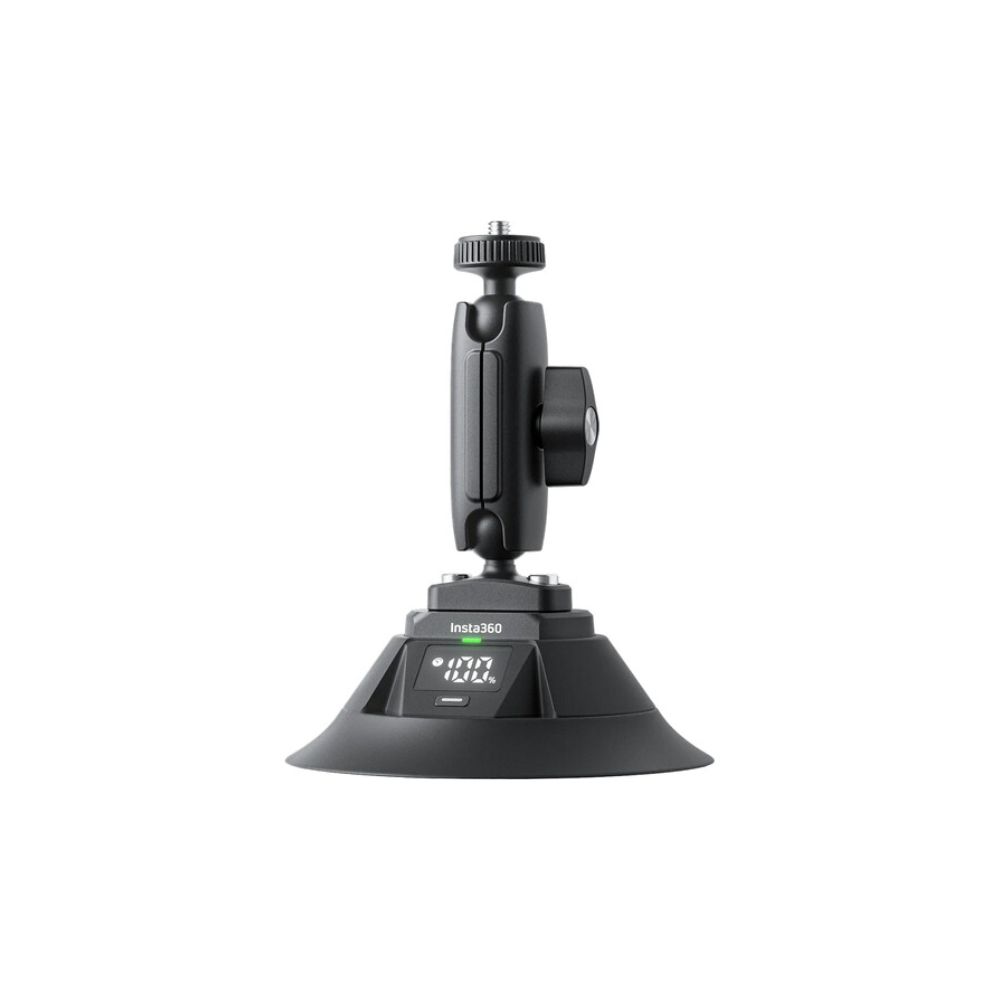

The mount features an integrated LED status indicator light on the top electronic housing shell. When you press and hold the power button against a clean, smooth surface, the active micro-pump will immediately start drawing air out. The status light will flash during this process and turn solid when it reaches a secure, safe operational vacuum lock. If the seal encounters a leak, the light will notify you, and the pump will turn back on automatically to rebuild pressure.

Can I leave this mount securely attached to a vehicle panel in heavy rain?

No. The Insta360 Electric Suction Cup Mount is splash-resistant and features a secure silicone protective plug over its USB-C port, but it is not completely waterproof. Heavy rain or standing water on vehicle panels can seep past the soft outer silicone rim or enter the internal air filter path, potentially damaging the electronic air sensors. For wet conditions, we recommend using a standard manual pump suction cup.

Can I attach a long invisible selfie stick directly to this single suction cup?

You should not attach a long, extended selfie stick to a single suction cup mount on the outside of a moving car. An extended selfie stick creates a large amount of leverage (a leverage arm) when exposed to high highway wind speeds or heavy road vibrations, which can distort your car’s sheet metal panel or twist the dual ball head out of alignment. For extended, floating third-person driving perspectives, you should upgrade to the official Insta360 Dual/Triple Electric Suction Cup Car Mount system to distribute the stress across multiple secure points.
